How a 33 Kv VCB Panel Improves Protection in Packaged Substation Systems
In today’s fast-growing world of electricity distribution, reliable protection systems are more critical than ever. One vital component that ensures the safety and efficiency of high-voltage networks is the 33 Kv VCB Panel. When integrated with a Packaged Substation, this combination becomes a compact yet powerful solution for managing and protecting power distribution.Let’s break down how this panel improves protection, why it matters, and what benefits it brings to modern electrical infrastructure.
What is a 33 Kv VCB Panel?

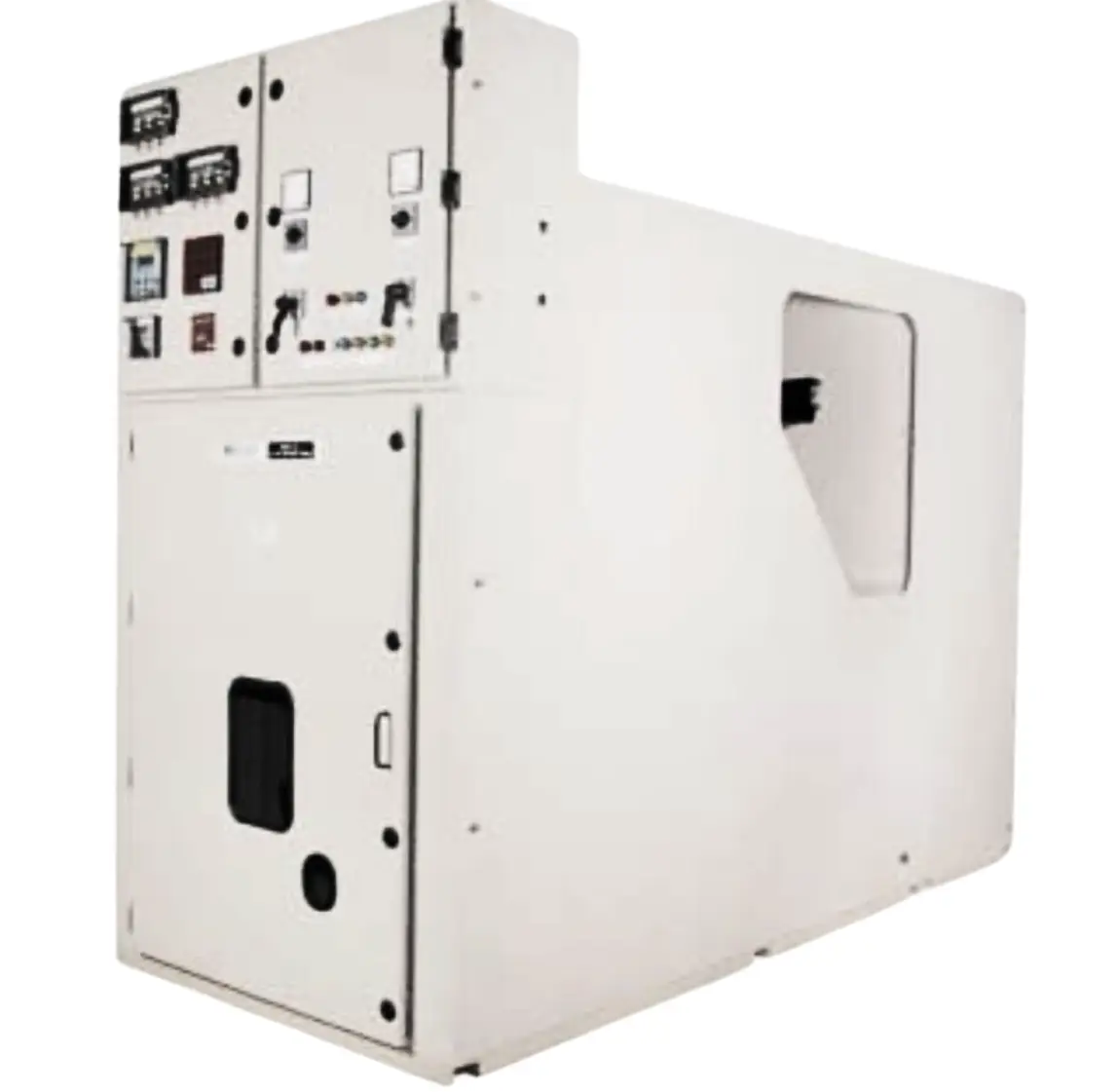

A 33 Kv VCB Panel is a type of high-voltage switchgear that uses vacuum circuit breakers (VCBs) for interrupting and isolating faults. “VCB” stands for Vacuum Circuit Breaker, which means the arc is extinguished in a vacuum medium. These panels are designed for medium-voltage applications, typically at 33,000 volts.
What is a Packaged Substation?
A Packaged Substation is a compact, pre-engineered unit that includes transformers, switchgear, protection, and control devices — all in one box. It simplifies installation, especially in urban or space-constrained areas, while ensuring safe and efficient power distribution.
Why Pair a 33 Kv VCB Panel with a Packaged Substation?
1. Enhanced Fault Protection
The 33 Kv VCB Panel provides quick and safe disconnection during faults. When there’s a short circuit or overload, the panel instantly cuts off the faulty section, preventing damage to connected equipment and reducing downtime.
2. Increased Safety for Operations
By isolating faulty sections and minimizing the risk of electrical hazards, these panels enhance overall system safety. The vacuum technology ensures arc quenching is clean and fast, avoiding fire risks and other hazards.
3. Improved System Reliability
A Packaged Substation combined with a 33 Kv VCB Panel ensures that the system is reliable, efficient, and robust. It minimizes manual operations and human error while supporting automatic fault handling.
4. Compact and Space-Saving Design
Both the 33 Kv VCB Panel and Packaged Substation are known for their compact footprints. This makes them ideal for applications in city centers, industrial parks, and places where space is limited.
5. Low Maintenance Requirements
Vacuum circuit breakers require very little maintenance compared to other switchgear technologies. This lowers overall operation costs and improves long-term performance.
6. High Endurance and Durability
With the ability to handle multiple fault interruptions without wear and tear, the 33 Kv VCB Panel has a longer life expectancy. Its performance is stable even under harsh environmental conditions.
7. Easy Integration with Automation Systems
These panels can be easily integrated into SCADA systems and remote-control operations, making them perfect for modern, smart grid infrastructure.
Key Applications of 33 Kv VCB Panel in Packaged Substations
- Industrial and commercial complexes
- Power generation and distribution stations
- Urban and rural electrification projects
- Data centers and healthcare facilities
- Renewable energy plants (solar/wind)
Frequently Asked Questions (FAQs)
1. What is the role of a 33 Kv VCB Panel in a Packaged Substation?
It ensures fault isolation, safe operation, and power system protection.
2. Are Packaged Substations suitable for outdoor use?
Yes, they are weatherproof and ideal for both indoor and outdoor installations.
3. How often do 33 Kv VCB Panels require maintenance?
They need very minimal maintenance due to vacuum insulation.
4. Can these panels be monitored remotely?
Yes, they can be integrated with SCADA or remote control systems.
5. What is the function of Ring Main Units (RMU) in power distribution?
Ring Main Units (RMU) provide continuous power and allow fault isolation in a looped power system.
Conclusion
In conclusion, using a 33 Kv VCB Panel within a Packaged Substation significantly enhances protection, reliability, and operational efficiency in medium-voltage power systems. From minimizing maintenance to enabling safe and automated fault handling, this combination is a smart investment for industries and utilities alike.Whether it's urban infrastructure, industrial hubs, or renewable energy sites — integrating advanced switchgear like the 33 Kv VCB Panel ensures that your power systems are future-ready and protected.Western Control Automation Pvt. Ltd. stands as a trusted name in delivering innovative and high-quality power distribution solutions, helping industries safeguard their electrical infrastructure effectively.
